AW60 Fire Rated Facade

Description

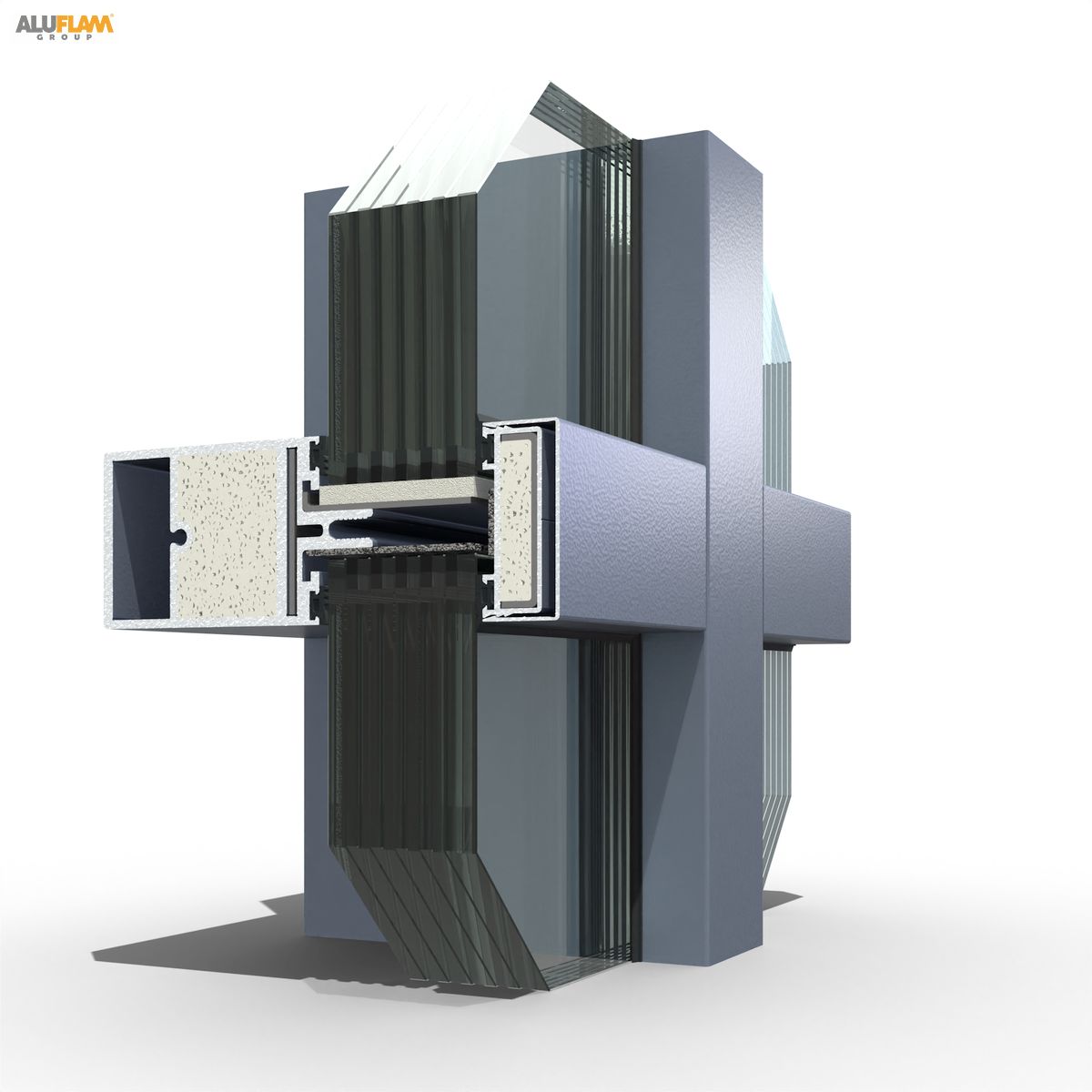

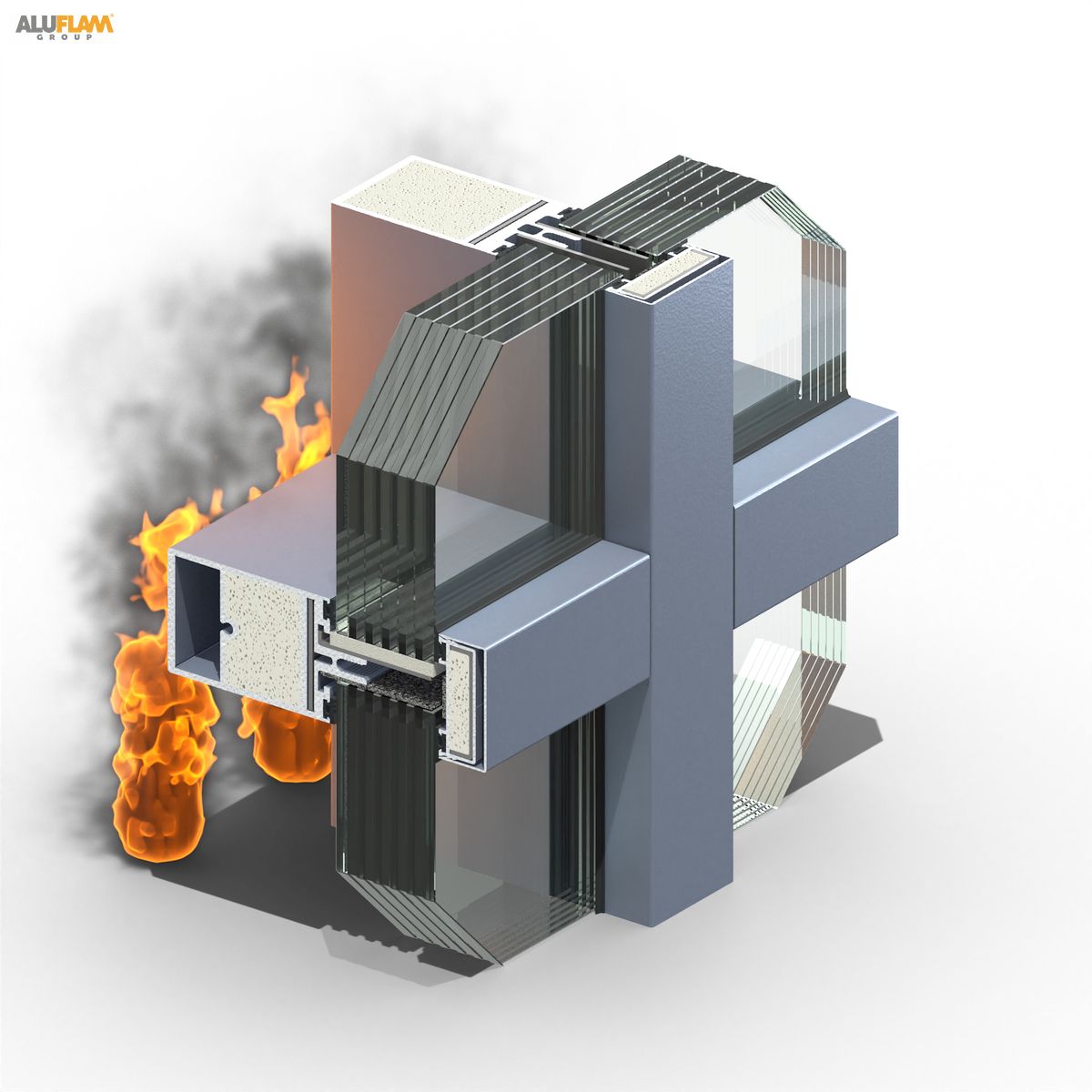

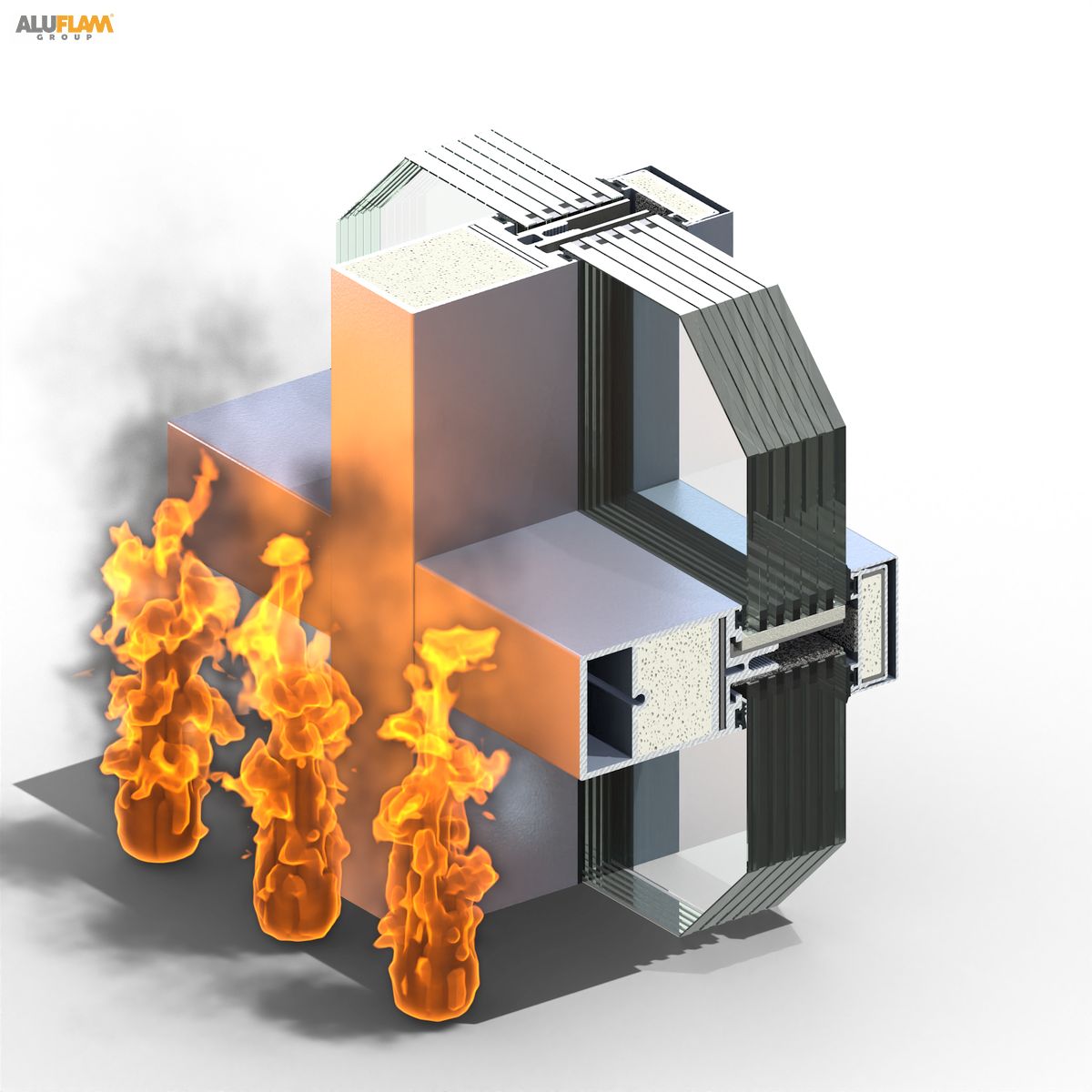

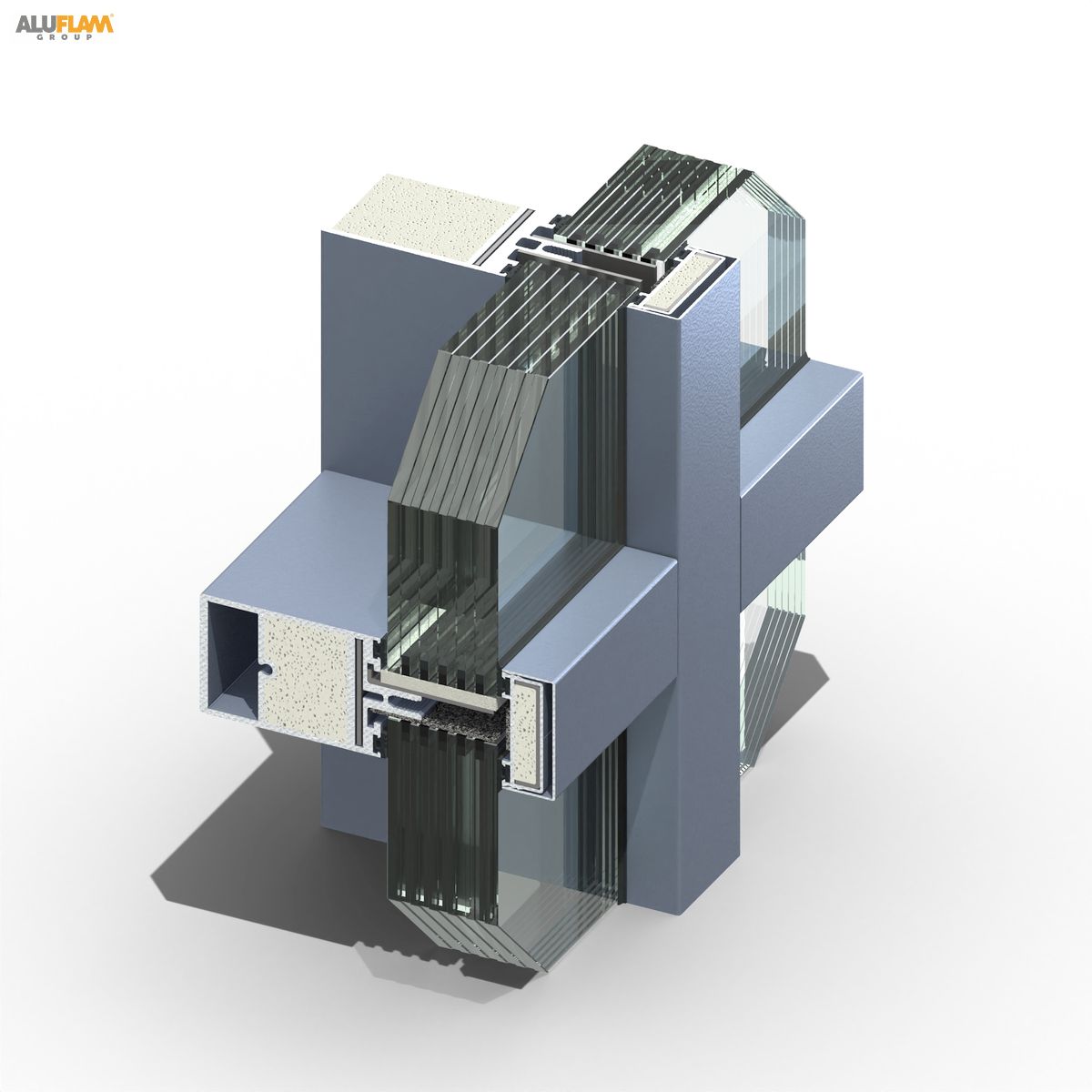

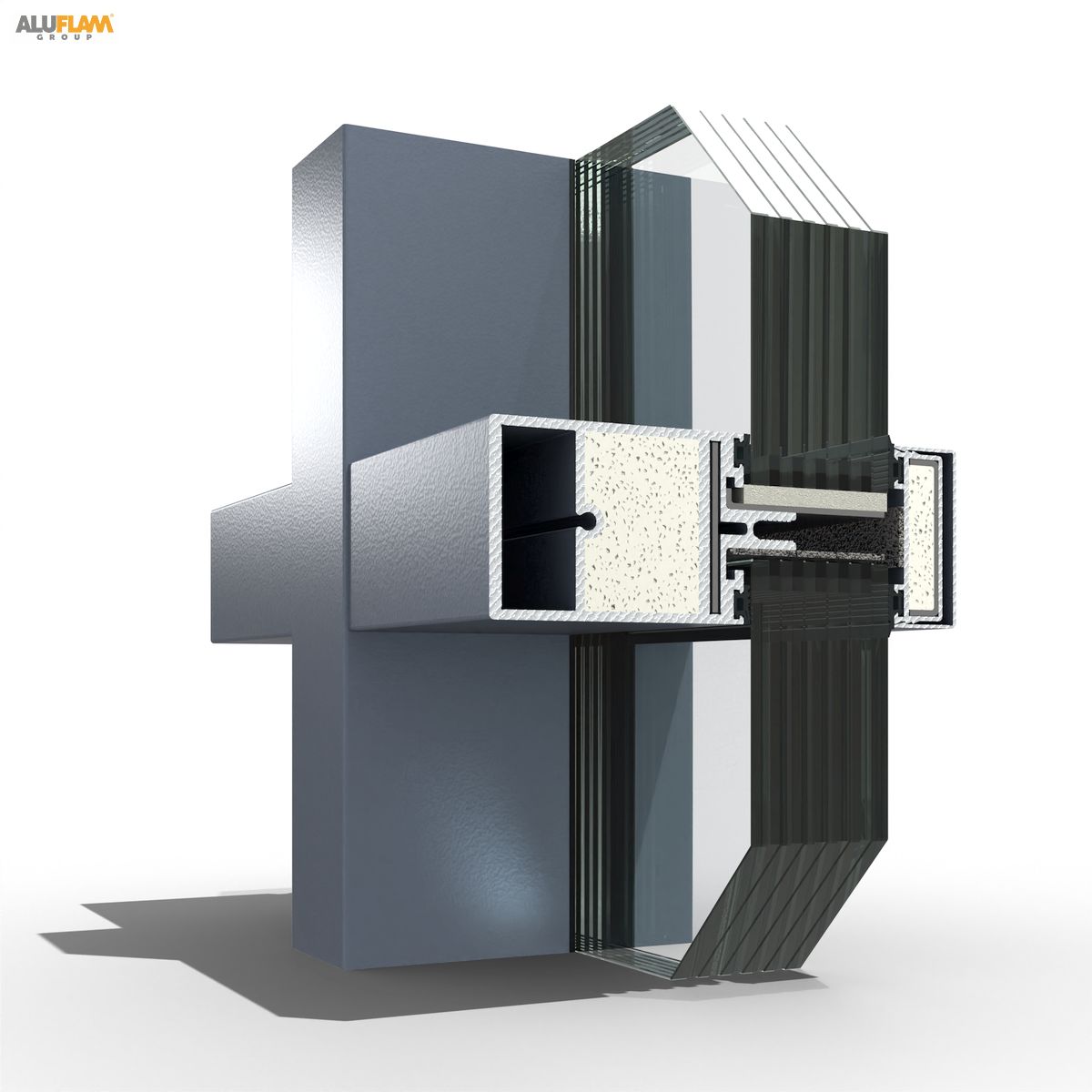

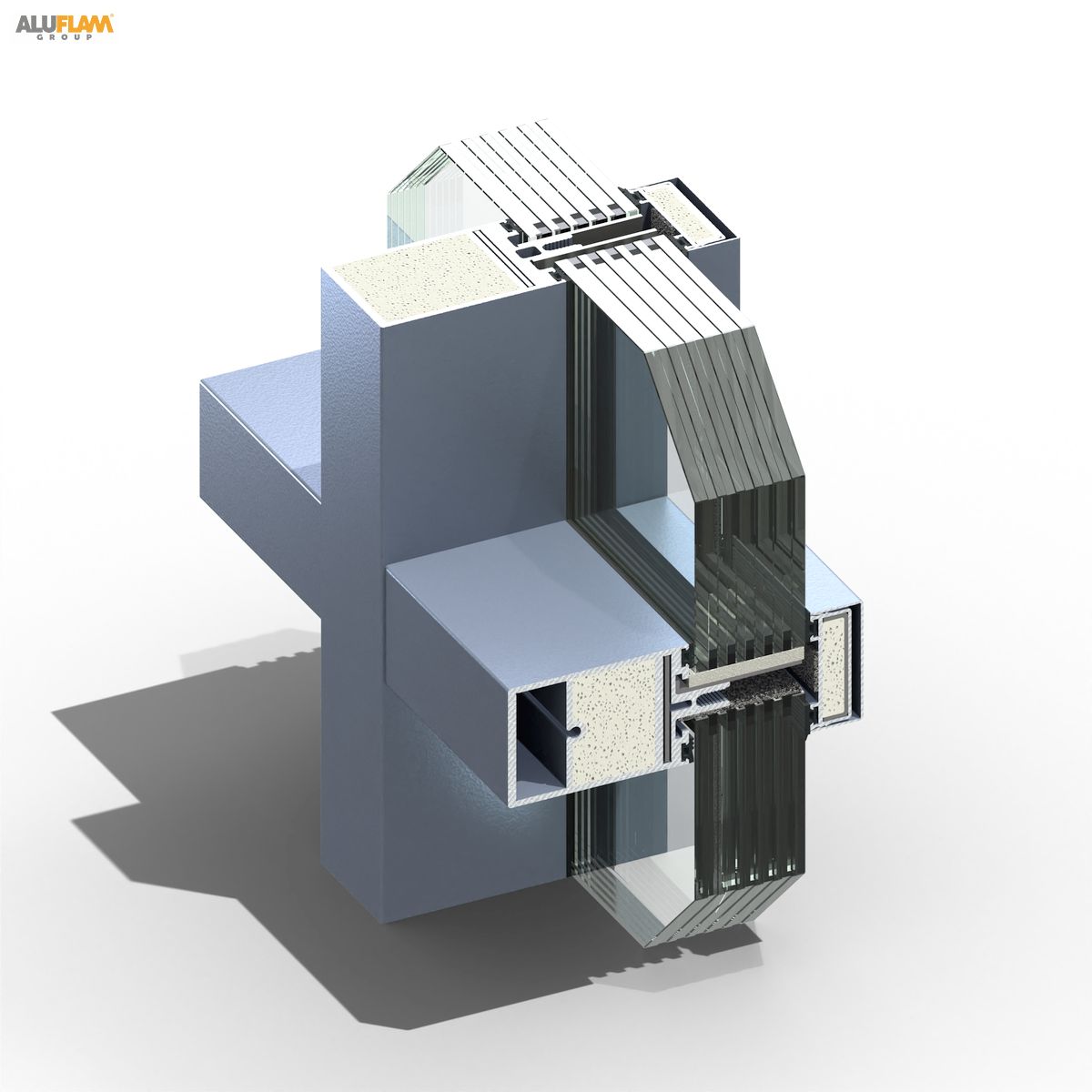

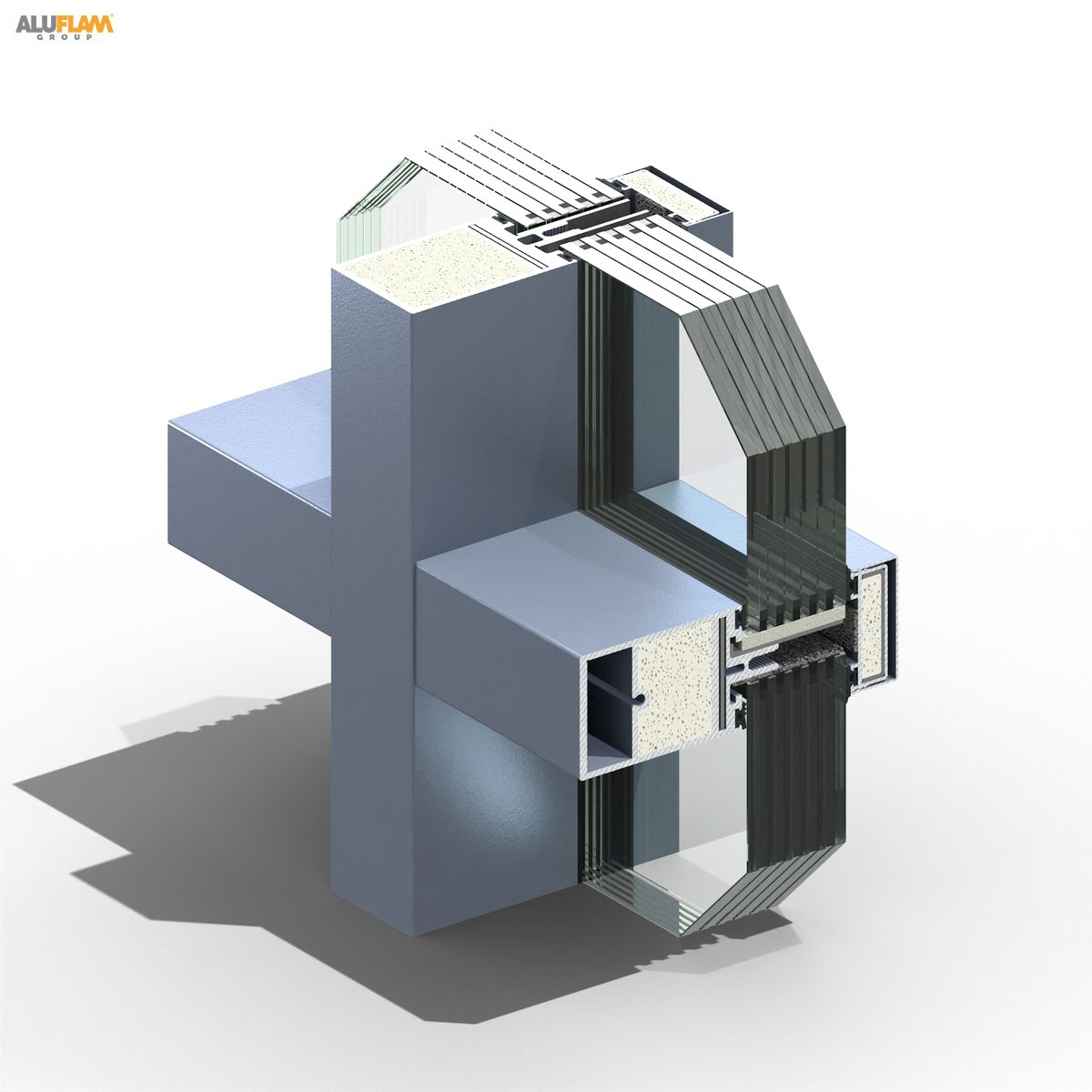

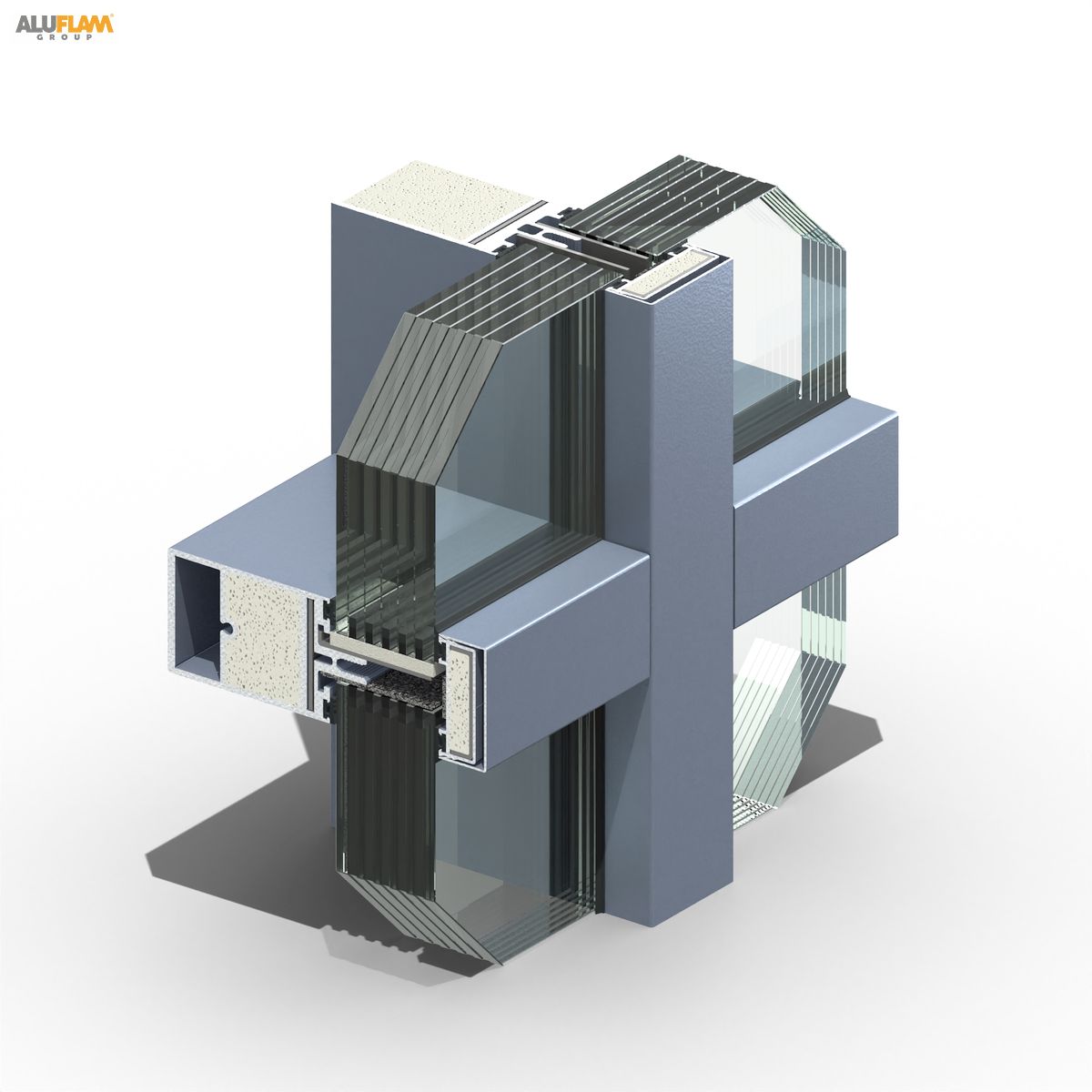

AW60 glass constructions are made of narrow aluminium profiles, the space of which is filled with patented fire-resistant, retardant cooling cores. Available in fire ratings E/EW/EI60, and EI120 with 60 and 120 minutes of fire protection respectively.
The products are fully tested in various European laboratories according to EN standards.

Highlights

Our AW60 facade system complies with EN 12600 standards

  • Fire classification E/EW/EI60 and 120
  • The barrier to thermal radiation
  • Large panes can be configured with this system
  • Aesthetic, narrow sightline of the system profiles: 60 mm
  • Good sound resistance
  • Single and multiple window panel designs are available
  • Surface finishing in RAL, NCS pallets or anodized
Parameters

Fire resistance: EW120, EI60 – EI90 – EI120
Tested glass: Contraflam 60-90-120, Pyrostop 60-120, Pyrobel 54
Maximal size: 3000 x 3000 mm
Minimal size: 600 x 600 mm

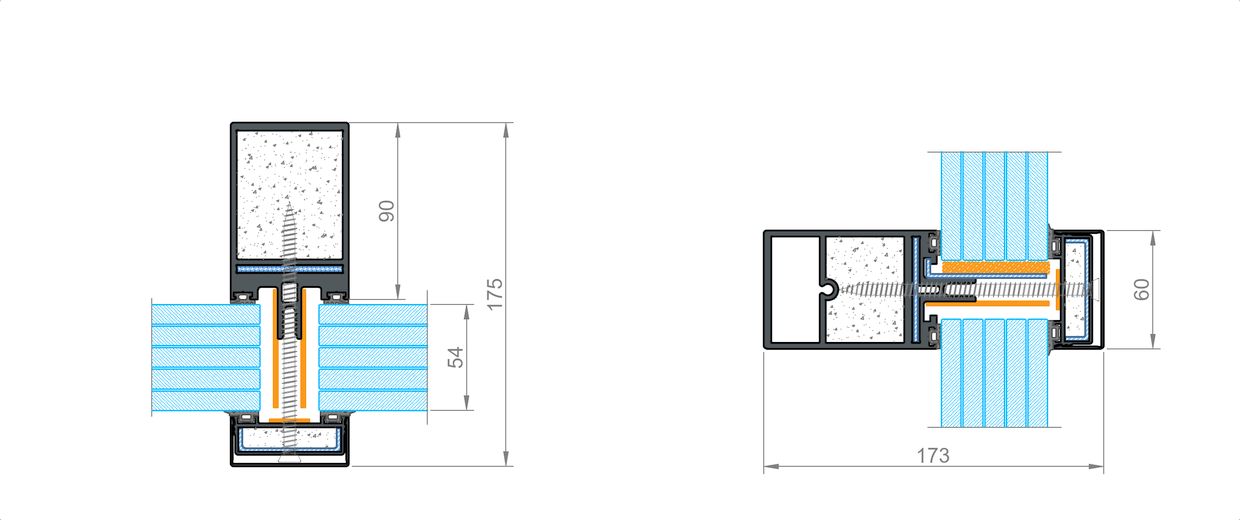

Frame depth / Sightline: 90 mm (mullion internal width) / 60mm
Maximal glazing thickness: 85 mm
Functionality: curtain walls
